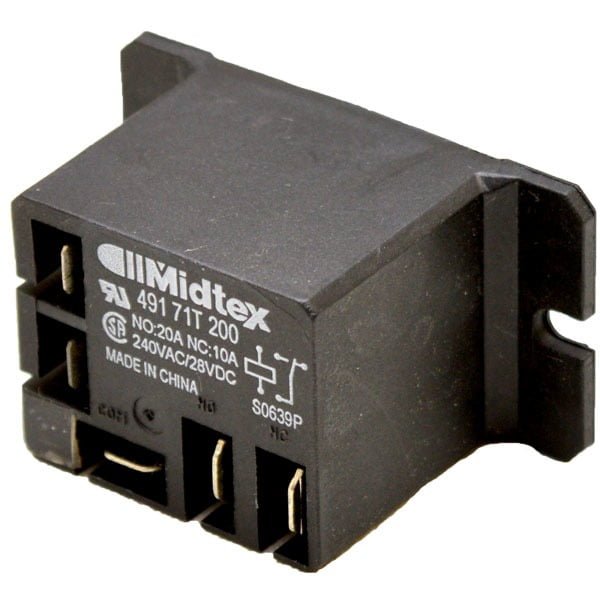

Midtex Boat Power Switch Relay 49171T-200 | Tiara 3312210 (Single)

Boat part number 1065069 is a new power switch relay manufactured by Midtex, part number 3312210 . This is a commonly used on Tiara Yachts, part number 3312210, but may be used for other boats.

This relay is constructed out of marine grade plastic and is black in color. This switch is in a washable, plastic sealed case, and meets UL 873 and UL 508 spacing – 1/8″ through air, 1/4″ over surface. Load connections made via 1/4″ Q. C. terminals. The relay measures approximately 1 1/8″L X 1 1/8″H X 2″W overall and has (5) Male spade connectors.

Specifications:

• Boat Manufacturer: Tiara Yachts
• Part Number: 3312210
• Part Manufacturer: Midtex
• Part Number: 49171T-200
• Materials: Marine Grade Plastic
• Electrical: 240 VAC 28VDC
• Amps: 20 Amps
• AC Coil Voltage: 120 V
• Maximum Current Rating: 30 A
• Minimum Contact Load: 1A @ 5VDC or 12VAC.
• Initial Contact Resistance: 50 milliohms @ 100mA, 6VDC)
• Overall Dimensions: 1 1/8″L X 1 1/8″H X 2″W
• Connection: (5) Male Spade Connectors

Sold as seen in pictures. Customers please note every computer shows colors differently. All measurements are approximate.

Instruction / installation manual not included. Hardware not included.
